Constructed with precision and durability in mind, the 5000 Series rotors combine high carbon cast iron rings with aerospace-grade aluminium hats (T6061-T6), secured with National Aerospace Standards (NAS) bolts and crimp nuts. The T3 variant sets a new standard in performance, featuring DBA's patented world-renowned T3 bi-directional slot design.
Inspired by the proven success of DBA's T2 slot, the T3 slot design introduces additional precise CNC machined tri-symmetrical slots, resulting in a smoother, more responsive braking experience. These innovative slots increase the number of exit points for brake pad friction dust and gases, enhancing the consistency and effectiveness of every brake stop.
DBA recommends the T3 slot for high-performance applications, where precision and reliability are paramount.
Sharing all the advanced performance technology of the 4000 Series, the 5000 Series offers further enhancements in weight reduction and heat management through the aerospace-grade aluminium hats. These hats reduce unsprung weight and facilitate uniform radial disc expansion, while minimising heat transfer from the disc to the hub.
DBA offers complete assemblies and replacement hats and flat disc rotors, providing drivers with flexibility and cost-effective replacement options. The two-piece design ensures easy installation and maintenance, with hat and rings available as complete assemblies or individual components.
Symmetrical slots facilitate efficient dispersion of friction dust and gases, resulting in a quieter and more responsive pedal feel. Other features include DBA Aluma-Lite centre hat, anti-rust painted non-friction areas, thermal stability profiling (TSP), thermal efficiency, CBN machine-turned finish, thermographic heat paint, high carbon alloyed iron formulation, Kangaroo Paw vein design, and NAS bolts and nuts.
Ideal for high-performance street vehicles, track day and club racing, rally applications, and show vehicles, DBA’s 5000 Series T3 Brake Rotors represent the pinnacle of braking excellence. Elevate your driving experience with DBA's industry-leading technology and performance.
*Some variants may not contain all features
Features

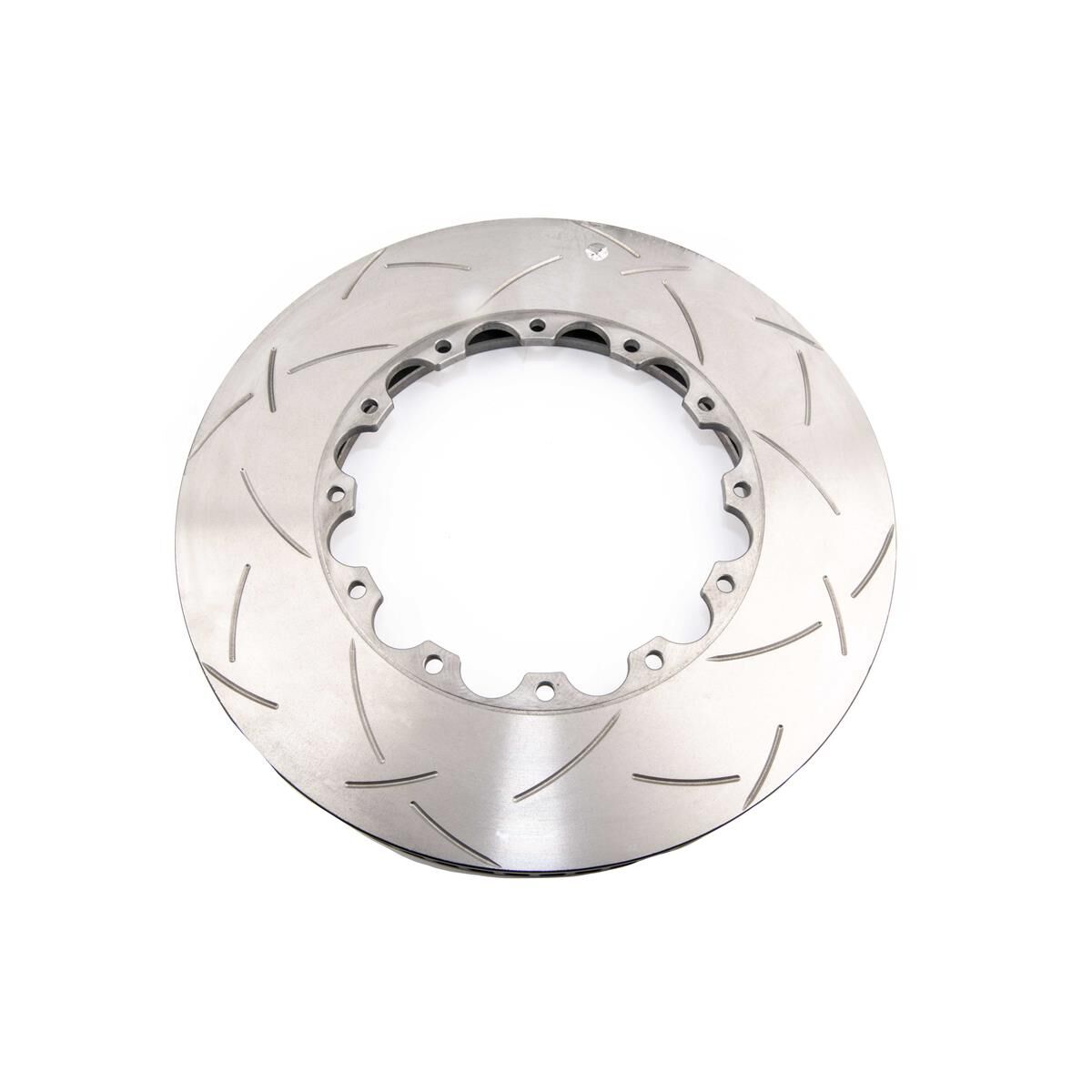

- SINGLE REPLACEMENT RING ONLY - not complete rotor
- Quieter & more responsive pedal feel with surface design slots and/or chamfered drill holes facilitate the exit of friction dust & gasses*
- Anodised aluminium* hat to prevent rust & enhance appearance plus Thermographic Heat Paint markings change colour at precise temperatures, aiding in the monitoring of braking temperatures & detecting rotor fatigue
- Reduced unsprung weight for better vehicle handling with aluma-lite centre hat/bell made from extralight 6061 T6 aircraft aluminium
- Bi-directional use symmetrical slotting and/or drilling for universal left/right use *
- Increased rotor stability & durability from heat treatment cycles that realign the irons microstructure and increased heat transfer & thermal efficiency with Thermal Efficiency Centre-Split Core Castings
- CBN (Cubic Boron Nitride) machine turned finish ensures precision & uniformity, minimising disc thickness variation, reducing the risk of pad "knock" and premature wear
- High Carbon Alloyed Iron formulation is designed to interact optimally with DBA's thermal stability profiling (TSP), enhancing the rotor's ability to withstand continuous and intense heat over extended periods
- National Aerospace Standards (NAS) bolts and crimp nuts for maximum strength at minimal weight
-
Unique Kangaroo Paw vane design enhances heat dissipation by up to 20%, improving braking performance and extending the life of your brakes *
*Some variants may not contain all features
