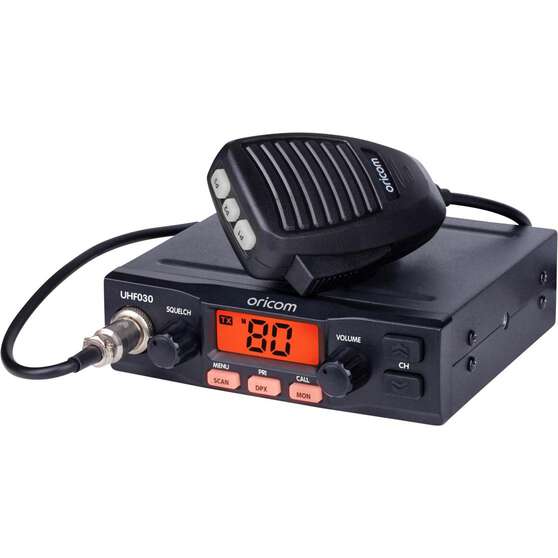

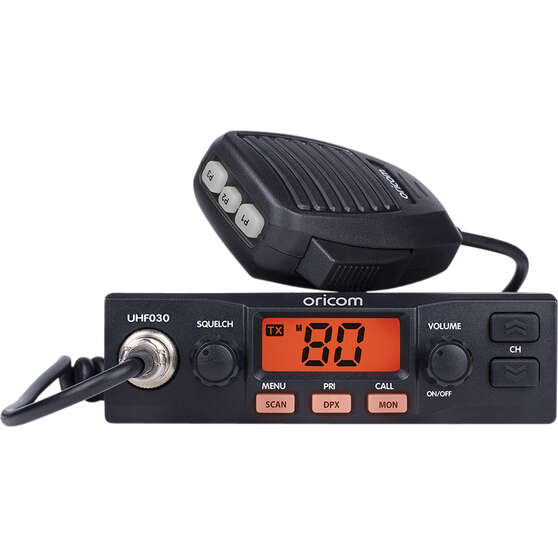

Oricom UHF CB Radio 5W UHF030
Details
https://www.supercheapauto.co.nz/p/oricom-oricom-uhf-cb-radio---5w-uhf030/363065.html
Now
$199.99
^
Was
$249.99
Don't Miss Out - Sale Ends
22/12/24
$0.00
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. 363065
Additional Information
Product Info
Product Info
This UHF CB radio has a tough construction and compact size which is ideal for mounting the unit anywhere handy and with all the features of a regular CB radio. It features the usual 80 channels and has a heavy duty microphone plug as well as a easy to read LCD Display. If required, it also has a 3.5mm mono speaker jack for external speakers. Duplex capability is included to take advantage of repeated range on emergency channels.
A breakdown of all product specs is included in the table below.
Features
- Choose from 80 transmission frequencies (75 voice channels)
- Compact size for flexible mounting options
- Duplex capability for emergency extended range
- Open / Instant / Repeater and priority scanning
- Rotary, squelch and volume control for easy sound quality control
- Oricom UHF Radio products are tested to AS/NZS4365:2011 to meet the ACMA Radio communications (UHF CB Radio Equipment) Standard 2011 (No. 1)
Tech Spec
| UHF030 COMPACT 5 WATT UHF CB RADIO | |
|---|---|
| GENERAL | |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB (75 Voice channels) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750kHz) |
| Scanning Speed | 130 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts nominal | 13.8VDC |
| Operating Volts Range | 10 to 15 VDC |
| Over Voltage Protection | voltage regulator |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency stability | +/- 2.5ppm |
| TRANSMITTER | |
| RF Output Power | Nominal 5 watts |
| Modulation | F3E(FM) |
| Maximum deviation | 2.5KHz |
| Spurious Emissions | < -70 dBc |
| TX Audio pre-emphasis | + 6dB/octave from 300Hz to 3kHz |
| Current consumption during TX | 1.5 Amps with 50 Ohm antenna termination |
| RECEIVER | |
| Circuit Type | Direct conversion by Single DSP chip |
| Intermediate Frequencies | IF = 137KHz |
| Maximum useable sensitivity | Less than -122dBm at 12dB SINAD |
| Audio output power | 3 Watts Maximum |
| RX Audio de-emphasis | -6dB/octave 300Hz to 3kHz |
| MECHANICAL | |
| Dimensions (mm) | 40 H x 139 W x 123 D |
