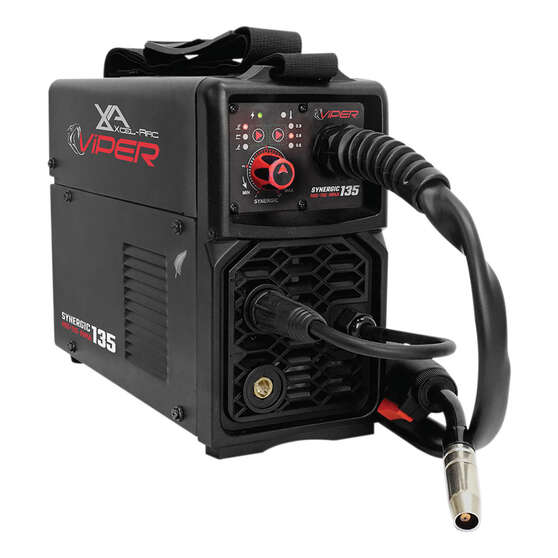

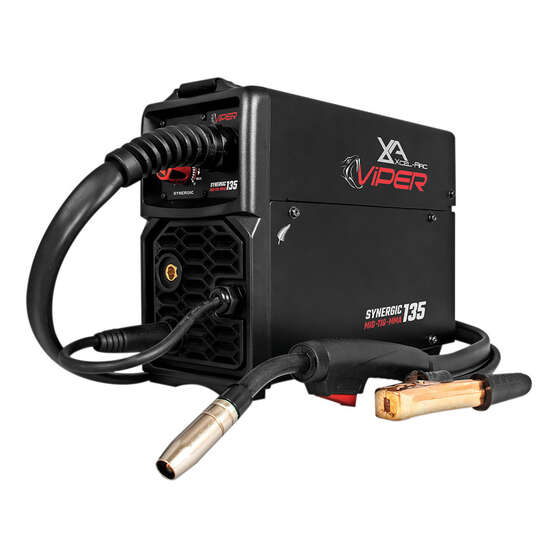

The Xcel-Arc Viper Multi 135 Multiprocess Welder is a true workhorse designed to meet the diverse needs of welders, offering MIG, TIG, and Stick welding capabilities all within a single, convenient machine. At the heart of this welder is its Synergic MIG control, which simplifies the welding process by taking the guesswork out of settings. With the ability to select your wire size and material thickness, you can be ready to weld with confidence in no time. This feature ensures that your welds are precise and consistent, saving you valuable time and effort.
Whether you prefer gas-shielded MIG or gasless MIG wire, the UNIMIG Viper Multi 135 has you covered, providing the flexibility to adapt to different welding requirements. Despite its impressive capabilities, this welder remains lightweight and portable, and for added convenience, it comes with a shoulder strap, making it easy to transport to various job sites. As an extra bonus, this multiprocess welder includes a 1kg E71T-GS 0.8mm Gasless Wire, ensuring you have the consumables on hand to start your next project.
Features
- Super versatile multi-process welder capable of MIG, TIG and Stick - all on one machine
- Synergic MIG control helps to take the guesswork out of settings
- Simply select your wire size and the thickness of your material and you're ready
- Supports both gas-shielded MIG and gasless MIG wire
- Lightweight and portable, with a shoulder strap included for added comfort
- Come with a 1kg E71T-GS 0.8mm Gasless Wire
- 10 Amp plug allows you to take this machine with you wherever you go
Tech Spec
Box Contents
- VIPER MULTI 135 MIG/TIG/STICK Welder
- 2m Direct Connect MIG Torch
- 2m Earth Clamp & Lead
- Electrode Holder
- 2m Gas Hose Complete with fittings
- 1kg E71T-GS 0.8mm Gasless Wire
- Operating Manual
Machine Specifications
| Primary Input Voltage | 240V Single Phase |
|---|---|
| Supply Plug | 10 AMP |
| Rated Input Power (kVA) | 4.15 |
| Ieff (A) | 8.4 |
| Rated Output | 40/16A-135A/21V |
| No Load Voltage (V) | 68 |
| Protection Class | IP21S |
| Insulation Class | H |
| Power Factor | 0.68 |
| Minimum Generator (kVA) | 8.0 |
| Dinse Connector | 10/25 |
| Standard | AS/NZ60974-1 |
| Suitable Material | Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper |
| Dimensions (mm) | 353x132x250mm |
| Weight (Kg) | 5.2kg |
| Warranty (Years) | 2 |
MIG Specifications
| MIG Welding Current Range | 40-135A |
|---|---|
| MIG Duty Cycle @ 40°C | 15% @ 135A, 60% @ 65A, 100% @ 50A |
| MIG Wire Size Range | 0.6-0.9mm |
| MIG Wire Spool Size | 1kg |
| MIG Welding Thickness Range | 1-6mm |
TIG Specifications
| TIG Function Type | DC Lift Arc |
|---|---|
| TIG Welding Current Range | 20-120A |
| TIG Duty Cycle @ 40°C | 15% @ 120A, 60% @ 60A, 100% @ 45A |
| TIG Welding Thickness Range | 1-6mm |
Stick Specifications
| Stick Welding Current Range | 20-120A |
|---|---|
| Stick Duty Cycle @ 40°C | 15% @ 120A, 60% @ 60A, 100% @ 45A |
| Stick Electrode Range | 2.5-3.2mm |
| Stick Welding Thickness Range | 1-6mm |
